STK4024V AF Power Amplifier

STK4024V Description

Ordering number : EN4388A Thick Film Hybrid IC STK4024V AF Power Amplifier (Split Power Supply) (20 W min, THD = 0.08%) .
of External Parts : Input filter circuit R1, C1. Reduces high-frequency noise. DC current suppression.

STK4024V Features

* Compact packaging supports slimmer set designs (up to 70 W)
* Series designed from 20 up to 100 W (200 W) and pincompatibility (120 to 200 W have 18 pins)
* Simpler heat sink design facilitates thermal design of slim stereo sets

STK4024V Applications

* (For use with differential stage applications) For oscillation suppression and phase compensation applications (A Mylar capacitor is recommended for C4 for use with output stage applications) For oscillation suppression and phase compensation applications Power stage (Must be connected near the pin)

📥 Download Datasheet

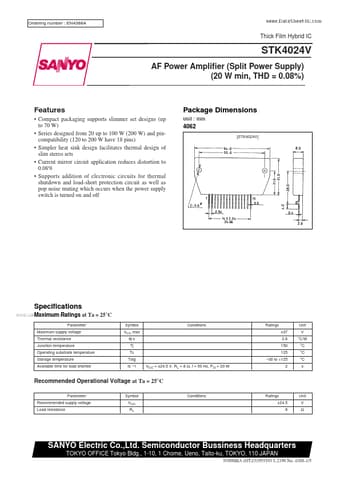

Preview of STK4024V PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STK4024V
Manufacturer
Sanyo Semicon Device
File Size
362.86 KB
Datasheet
STK4024V_SanyoSemiconDevice.pdf
Description
AF Power Amplifier
