STK400-040 AF Power Amplifier

STK400-040 Description

Ordering number : EN4339A w designed and amplifier output capacity changed simply a D .Overview w Now, thick-film audio power amplifier ICs are ava.
of External Circuits C1, 11, 21 For input coupling capacitor.

STK400-040 Features

* Pin-compatible STK400-000 series (3-channel, single package) STK401-000 series (2-channel, single package)
* Output load impedance RL = 6Ω/3Ω supported
* New pin arrangement To simplify input/output pattern layout and minimize the effects of pattern layout on operational ch

STK400-040 Applications

* using STK400-010 to STK400-090. Unit (resistance:Ω, capacitance:F)
* 2 Unnecessary with applications using STK401-010 to STK401-090. Heat Radiation Design Considerations The radiator thermal resistance θc-a required for total substrate power dissipation Pd in the STK400-040 is determined as: C

📥 Download Datasheet

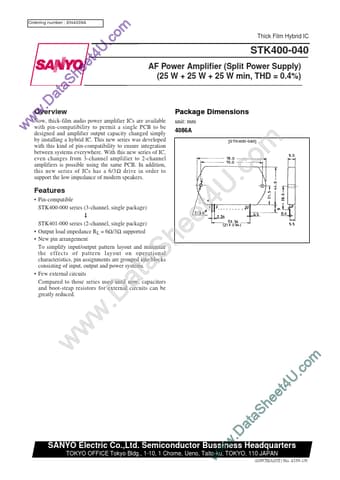

Preview of STK400-040 PDF
