SB40-05 - 50V/ 4A Rectifier

Sanyo Semicon Device

📥 Download Datasheet

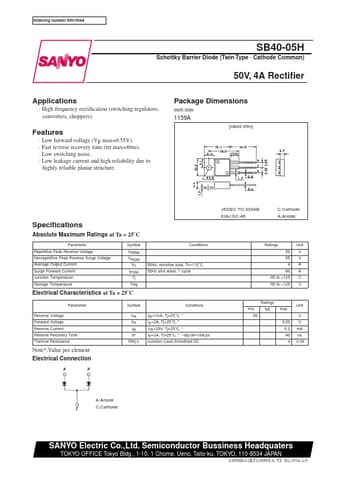

SB40-05 Datasheet Preview — Preview of SB40-05 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SB40-05
Manufacturer	Sanyo Semicon Device
File Size	73.07 KB
Description	50V/ 4A Rectifier
Datasheet	SB40-05_SanyoSemiconDevice.pdf

SB40-05 Product details

Features

Low forward voltage (VF max=0.55V).
Fast reverse recovery time (trr max=40ns).
Low switching noise.
Low leakage current and high reliability due to highly reliable planar structure. JEDEC:TO-220AB EIAJ:SC-46 C:Cathode A:Anode Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Repetitive Peak Reverse Voltage Nonrepetitive Peak Reverse Surge Voltage Average Output Current Surge Forward Current Junction Temperature Storage Temperature Symbol VRRM VRSM IO IFSM.
