LV5230LG - Dot-matrix LED Driver

📥 Download Datasheet

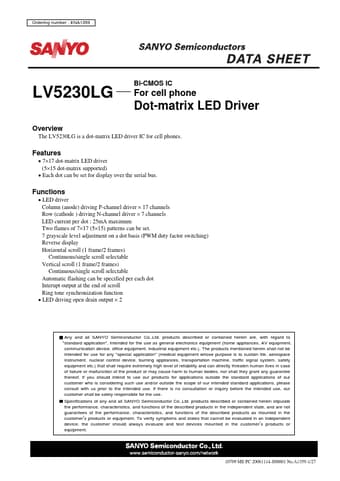

Preview of LV5230LG PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number LV5230LG
Manufacturer Sanyo Semicon Device
File Size 244.21 KB
Description Dot-matrix LED Driver
Datasheet download datasheet LV5230LG_SanyoSemiconDevice.pdf

LV5230LG Product details

Description

Equivalent Circuit SVCC A1 pin A2 RT Reference current setting resistor connection pin.By connecting the external resistor between this pin and GND, the reference current is generated.The pin voltage is about 0.61V.Change of this current value enables change of the oscillation frequency and LED driver current value (COL1 to COL17 only).SVCC A2 pin A3 A6 B1 B2 B4 B5 C2 ROW4 ROW7 ROW2 ROW3 ROW5 ROW6 ROW1 N-channel driver output pins 1 to 7 for row (cathode) drive.Must be connected t

Features
