LE28CV1001T-12 - 1MEG (131072 words x 8 bits) Flash Memory

Features

  • Highly reliable 2-layer polysilicon CMOS flash EEPROM process.
  • Read and write operations using a 5 V single-voltage power supply.
  • Fast access time: 120 and 150 ns.
  • Low power dissipation.
  • Operating current (read): 12 mA (maximum).
  • Standby current: 15 µA (maximum).
  • Highly reliable read/write.
  • Erase/write cycles: 104/103 cycles.
  • Data retention time: 10 years.
  • Address and data latches.
  • Fast page rewrite.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LE28DW3212AT-80B 32 Megabit FlashBank Memory Sanyo
LE28DW8102T 8 Megabit FlashBank Memory Sanyo
LE24162LBXA Two Wire Serial Interface EEPROM ON Semiconductor
LE24162LBXA Two Wire Serial Interface EEPROM Sanyo
LE24163LBXA 16kb I2C CMOS Serial EEPROM ON Semiconductor

Other Datasheets by SANYO (now Panasonic)

Part Number Description
LE28CV1001T-15 1MEG (131072 words x 8 bits) Flash Memory
LE28CV1001T 1MEG (131072 words x 8 bits) Flash Memory
LE28CV1001M 1MEG (131072 words x 8 bits) Flash Memory
LE28C1001M 1MEG (131072 words x 8 bits) Flash Memory
LE28C1001T 1MEG (131072 words x 8 bits) Flash Memory

Full PDF Text Transcription

Click to expand full text

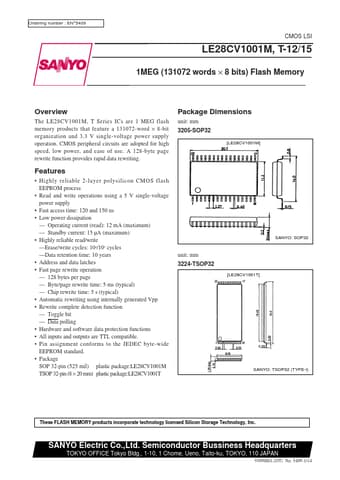

Ordering number : EN*5409 CMOS LSI LE28CV1001M, T-12/15 1MEG (131072 words × 8 bits) Flash Memory Overview The LE28CV1001M, T Series ICs are 1 MEG flash memory products that feature a 131072-word × 8-bit organization and 3.3 V single-voltage power supply operation. CMOS peripheral circuits are adopted for high speed, low power, and ease of use. A 128-byte page rewrite function provides rapid data rewriting.
