LC75410W - Electronic Volume Controller

Features

  • On-chip buffer amplifier cuts down number of external components.
  • Low switching noise generated by on-chip switch through use of silicon gate CMOS process, for low switching noise when there is no signal.
  • Low switching noise when there is a signal due to use of on-chip zero-cross switching circuit.
  • On-chip 1/2 VDD reference voltage circuit.
  • Controls performed with serial input (CCB) Functions.
  • Volume: 0 dB to.
  • 79.5 dB in 0.5-dB step.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LC75411ES (LC75411ES/WS) electronic volume control system Sanyo Semiconductor
LC75411WS (LC75411ES/WS) electronic volume control system Sanyo Semiconductor
LC75 1500 Watt Low Capacitance Transient Voltage Suppressor Microsemi
LC7500 Electronic Volume Controller Sanyo Electric
LC75055PE Car Audio DSP ON Semiconductor

Other Datasheets by SANYO (now Panasonic)

Part Number Description
LC75410E Electronic Volume Controller
LC75412E Electronic Volume Controller
LC75412W Electronic Volume Controller
LC75421M Electronic Volume Controller
LC75010W Car Audio DSP

Full PDF Text Transcription

Click to expand full text

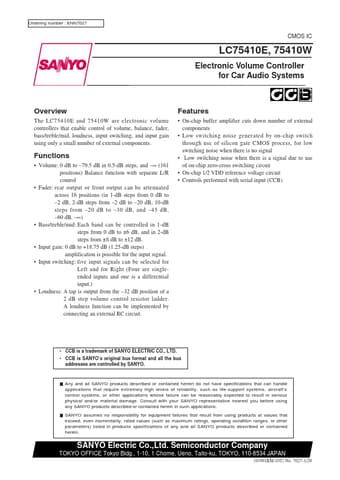

Ordering number : ENN7027 CMOS IC LC75410E, 75410W Electronic Volume Controller for Car Audio Systems Overview The LC75410E and 75410W are electronic volume controllers that enable control of volume, balance, fader, bass/treble/mid, loudness, input switching, and input gain using only a small number of external components. Features • On-chip buffer amplifier cuts down number of external components • Low switching noise generated by on-chip switch through use of silicon gate CMOS process, for low switching noise when there is no signal • Low switching noise when there is a signal due to use of on-chip zero-cross switching circuit • On-chip 1/2 VDD reference voltage circuit • Controls performed with serial input (CCB) Functions • Volume: 0 dB to –79.5 dB in 0.
