LC75391 - Single-Chip Electronic Volume Control

📥 Download Datasheet

📁 Similar Datasheet

  • LC7530 - CMOS LSI (Sanyo Semiconductor)
  • LC75344MD - Two-Channel Electronic Volume Controller (ON Semiconductor)
  • LC75345M - Electronic Volume Control System on-Chip (Sanyo Electric)
  • LC75347E - 6-Channel Single-Chip Electronic Volume Control System (Sanyo Electric)
  • LC75348 - Single-Chip Electronic Volume and Tone Control System (Sanyo Electric)
  • LC7534M - (LC7533) 3V Operated Electronic Volume Control (Sanyo Electric)
  • LC75384NE-R - Electronic Volume and Tone Controller (Sanyo Semiconductor Corporation)
  • LC75384NW - Electronic Volume and Tone Controller (Sanyo Semiconductor Corporation)
  • LC75 - 1500 Watt Low Capacitance Transient Voltage Suppressor (Microsemi)
  • LC7500 - Electronic Volume Controller (Sanyo Electric)
Other Datasheets by Sanyo Semicon Device
  • LC75391M - Single-Chip Electronic Volume Control
  • LC75392 - Single-Chip Electronic Volume Control
  • LC75392M - Single-Chip Electronic Volume Control
  • LC75394NE - Single-Chip Electronic Volume Control
  • LC75395E - Single-Chip Electronic Volume Control
  • LC75396NE - Single-Chip Electronic Volume Control
  • LC75397E - Single Chip Electronic Volume and Tone Control System
  • LC7533 - 3V Electronic Volume Control

Full PDF Text Transcription

Click to expand full text

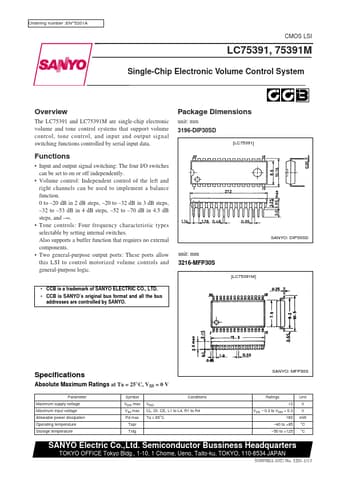

Ordering number :EN*5201A CMOS LSI LC75391, 75391M Single-Chip Electronic Volume Control System Overview The LC75391 and LC75391M are single-chip electronic volume and tone control systems that support volume control, tone control, and input and output signal switching functions controlled by serial input data. Package Dimensions unit: mm 3196-DIP30SD [LC75391] Functions • Input and output signal switching: The four I/O switches can be set to on or off independently. • Volume control: Independent control of the left and right channels can be used to implement a balance function. 0 to –20 dB in 2 dB steps, –20 to –32 dB in 3 dB steps, –32 to –53 dB in 4 dB steps, –52 to –70 dB in 4.5 dB steps, and –∞.
