LC75374E - Electronic Volume and Tone Control

Name: LC75374E
SKU: LC75374E-66862

Sanyo Semicon Device

📥 Download Datasheet

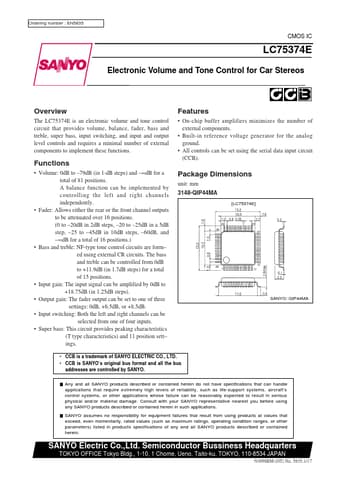

LC75374E Datasheet Preview — Preview of LC75374E PDF

Datasheet Details

Part number	LC75374E
Manufacturer	Sanyo Semicon Device
File Size	383.55 KB
Description	Electronic Volume and Tone Control
Datasheet	LC75374E_SanyoSemiconDevice.pdf

LC75374E Product details

Description

Notes 19 Vref Supply voltage generator (0.525 × VDD) used for the analog ground. Fader outputs. Fader inputs These inputs must be driven by low-impedance circuits. Left channel super bass compensation capacitor connection

Features

On-chip buffer amplifiers minimizes the number of external components.
Built-in reference voltage generator for the analog ground.
All controls can be set using the serial data input circuit (CCB). Functions.
Volume: 0dB to.
79dB (in 1-dB steps) and.
∞dB for a total of 81 positions. A balance function can be implemented by controlling the left and right channels independently.
Fader: Allows either the rear or the front channel out.
