LC75281E - Parametric Equalizer

Features

  • A parametric equalizer with the following features can be implemented with just two ICs: this IC and a microcontroller.
  • The center frequency, gain, and Q can be controlled by a single operation.
  • Memory recall by a single operation can be implemented using preset values.
  • Either shelving or peaking characteristics can be selected for the low band. SANYO: QFP64E (QIP64E).
  • CCB is a trademark of SANYO.

📥 Download Datasheet

📁 Similar Datasheet

  • LC7520 - Electronic Volume Control (Sanyo Electric)
  • LC7522 - ELECTORONIC VOLUME CONTROL (Sanyo)
  • LC7523 - Electronic Volume Control (Sanyo Electric)
  • LC7523M - Electronic Volume Control (Sanyo Electric)
  • LC75 - 1500 Watt Low Capacitance Transient Voltage Suppressor (Microsemi)
  • LC7500 - Electronic Volume Controller (Sanyo Electric)
  • LC75055PE - Car Audio DSP (ON Semiconductor)
  • LC75056PE - Car Audio DSP (ON Semiconductor)
  • LC7510 - (LC7512) CMOS IC (Sanyo)
  • LC75106V - Digital Echo LSI (ON Semiconductor)
Other Datasheets by Sanyo Semicon Device
  • LC7527E - Graphic Equalizer System
  • LC75010W - Car Audio DSP
  • LC7533 - 3V Electronic Volume Control
  • LC75341 - Single-Chip Volume and Tone Control
  • LC75341M - Single-Chip Volume and Tone Control
  • LC75342 - Single-Chip Volume and Tone Control
  • LC75342M - Single-Chip Volume and Tone Control
  • LC75343M - Electronic Volume Control

Full PDF Text Transcription

Click to expand full text

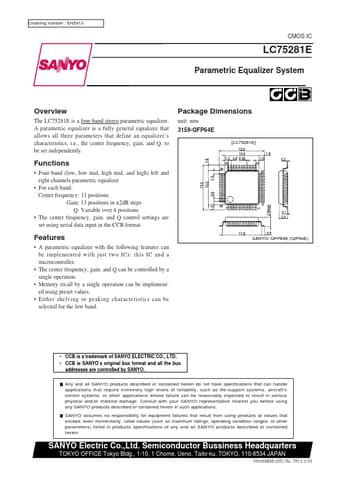

Ordering number : EN5913 CMOS IC LC75281E Parametric Equalizer System Overview The LC75281E is a four-band stereo parametric equalizer. A parametric equalizer is a fully general equalizer that allows all three parameters that define an equalizer’s characteristics, i.e., the center frequency, gain, and Q, to be set independently. Package Dimensions unit: mm 3159-QFP64E [LC75281E] Functions • Four-band (low, low mid, high mid, and high) left and right channels parametric equalizer • For each band: Center frequency: 11 positions Gain: 13 positions in ±2dB steps Q: Variable over 8 positions • The center frequency, gain, and Q control settings are set using serial data input in the CCB format.
