LA76075 - NTSC Color Television Sets

Sanyo Semicon Device

📥 Download Datasheet

LA76075 Datasheet Preview — Preview of LA76075 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LA76075
Manufacturer	Sanyo Semicon Device
File Size	712.45 KB
Description	NTSC Color Television Sets
Datasheet	LA76075_SanyoSemiconDevice.pdf

LA76075 Product details

Features

I2C bus control.

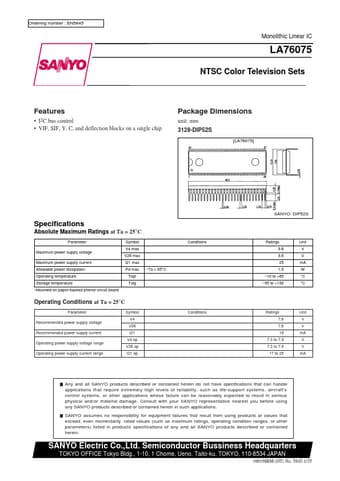

VIF, SIF, Y, C, and deflection blocks on a single chip Package Dimensions unit: mm 3128-DIP52S [LA76075] SANYO: DIP52S Specifications Absolute Maximum Ratings at Ta = 25°C Parameter Maximum power supply voltage Maximum power supply current Allowable power dissipation Operating temperature Storage temperature.
Mounted on paper-backed phenol circuit board Symbol V4 max V26 max I21 max Pd max Topr Tstg.
Ta ≤ 65°C Conditions Ratings 9.6 9.6 25 1.5.
