LA7137M - DVD Analog Video Outpit I/F

Features

  • Video signal-to-noise ratio : -80dB.
  • Frequency characteristics : flat to 10MHz.
  • Y/C time difference : less than 2ns.
  • Signal dynamic range : 170IRE.
  • Can support all major signal types : composite/S signals, component signals, and baseband (RGB) signals. Furthermore, the IC input type can be switched by the system microcontroller (since the input capacitors are shared).
  • Two 75Ω driver systems that can be independently muted by the system mic.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LA71011M VHS Video Y/c/a in a Single Chip Sanyo Semiconductor
LA7116 VCR Servo Interface Sanyo
LA7117 VCR Servo Interface Sanyo
LA71170M VHS video Y/C/A in a single chip Sanyo Semiconductor
LA71206M Video and Audio Signal-Processing IC Sanyo

Other Datasheets by SANYO (now Panasonic)

Part Number Description
LA7161NV VHF Band RF Modulator
LA71730EM VIDEO AND AUDIO SIGNAL-PROCESSING IC
LA71750EM Video and Audio Signal-Processing IC
LA70100M SECAM CHROMA- SIGNAL PROCESSOR IC
LA72670BM HiFi Sound Signal Processor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

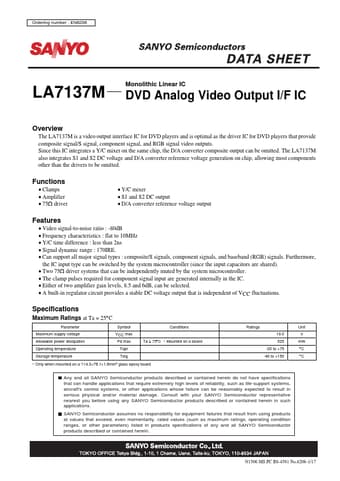

www.DataSheet4U.com Ordering number : EN6206 LA7137M Overview Monolithic Linear IC DVD Analog Video Output I/F IC The LA7137M is a video output interface IC for DVD players and is optimal as the driver IC for DVD players that provide composite signal/S signal, component signal, and RGB signal video outputs. Since this IC integrates a Y/C mixer on the same chip, the D/A converter composite output can be omitted. The LA7137M also integrates S1 and S2 DC voltage and D/A converter reference voltage generation on chip, allowing most components other than the drivers to be omitted.
