FW243 - DC/DC Converter Applications

Features

  • Low ON resistance.
  • 4V drive. Package Dimensions unit:mm 2129 [FW243] 8 5 0.3 4.4 6.0 0.2 5.0 1.5 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (pulse) Allowable Power Dissipation Total Dissipation Channel Temperature Storage Temperature Symbol VDSS VGSS ID IDP PD PT Tch Tstg 0.595 1.27 0.43 Conditions 0.1 1.8max 1 4 1 : Source1 2 : Gate1 3 : Source2 4 : Gate2 5 : Drain2 6 : Dra.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FW20020-24 2.0P HEADER 24P 6.2H STRAIGHT FooSungtech
FW20020-24S 2.0P HEADER 24P 6.2H STRAIGHT FooSungtech
FW20020-24SB 2.0P HEADER 24P 6.2H STRAIGHT FooSungtech
FW20A Fusible Power Resistors BOURNS
FW215 DC-DC Converter Applications Sanyo Semiconductor

Other Datasheets by SANYO (now Panasonic)

Part Number Description
FW241 Ultrahigh-Speed Swiching Applications
FW245 DC / DC Converter Applications
FW202 Ultrahigh-Speed Switching Applications
FW203 Ultrahigh-Speed Switching Applications
FW211 DC-DC Converter Applications

Full PDF Text Transcription

Click to expand full text

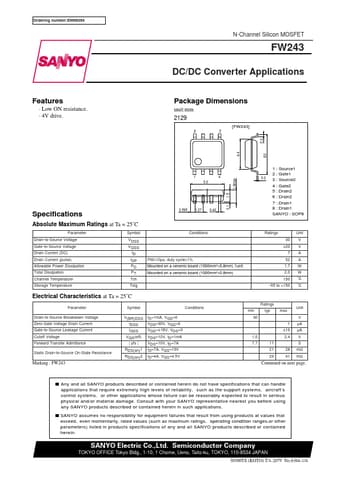

Ordering number:ENN6364 N-Channel Silicon MOSFET FW243 DC/DC Converter Applications Features · Low ON resistance. · 4V drive. Package Dimensions unit:mm 2129 [FW243] 8 5 0.3 4.4 6.0 0.2 5.0 1.5 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (pulse) Allowable Power Dissipation Total Dissipation Channel Temperature Storage Temperature Symbol VDSS VGSS ID IDP PD PT Tch Tstg 0.595 1.27 0.43 Conditions 0.1 1.8max 1 4 1 : Source1 2 : Gate1 3 : Source2 4 : Gate2 5 : Drain2 6 : Drain2 7 : Drain1 8 : Drain1 SANYO : SOP8 Ratings 30 ±20 7 Unit V V A A W W ˚C ˚C PW≤10µs, duty cycle≤1% Mounted on a ceramic board (1000mm2×0.8mm) 1unit Mounted on a ceramic board (1000mm2×0.8mm) 52 1.7 2.
