EFC4601R - N-Channel Silicon MOSFET

Features

  • General-Purpose Switching Device.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EFC4612R N-Channel Power MOSFET ON Semiconductor
EFC4612R-S Dual N-Channel MOSFET ON Semiconductor
EFC4618R-P Power MOSFET ON Semiconductor
EFC4619R Power MOSFET ON Semiconductor
EFC4621R Power MOSFET ON Semiconductor

Other Datasheets by SANYO (now Panasonic)

Part Number Description
EFC4601 N-Channel Silicon MOSFET
EFC4602 N-Channel Silicon MOSFET
EFC4606 N-Channel Silicon MOSFET
EFC4612R N-Channel Silicon MOSFET
EFC4615R N-Channel Silicon MOSFET

Full PDF Text Transcription

Click to expand full text

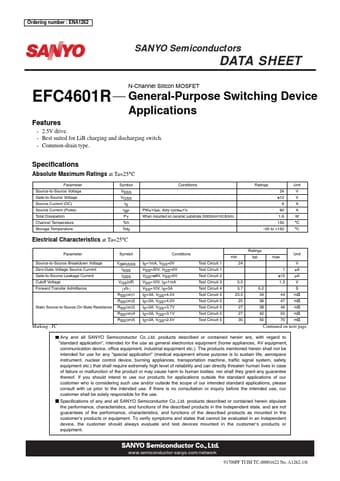

www.DataSheet.co.kr Ordering number : ENA1262 EFC4601R SANYO Semiconductors DATA SHEET N-Channel Silicon MOSFET EFC4601R Features • • • General-Purpose Switching Device Applications 2.5V drive. Best suited for LiB charging and discharging switch. Common-drain type. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Source-to-Source Voltage Gate-to-Source Voltage Source Current (DC) Source Current (Pulse) Total Dissipation Channel Temperature Storage Temperature Symbol VSSS VGSS IS ISP PT Tch Tstg PW≤10μs, duty cycle≤1% When mounted on ceramic substrate (5000mm2✕0.8mm) Conditions Ratings 24 ±12 6 60 1.
