ECH8306 - P-Channel Silicon MOSFET

Features

  • General-Purpose Switching Device.

📥 Download Datasheet

📁 Similar Datasheet

  • ECH8308 - P-Channel Power MOSFET (ON Semiconductor)
  • ECH8309 - P-Channel Power MOSFET (ON Semiconductor)
  • ECH83 - Triode - Heptode 1957 (Philips)
  • ECH83 - Triode - Heptode (LA RADIOTECHNIQUE)
  • ECH83 - Triode - Heptode 1969 (Philips)
  • ECH8310 - -30V -9A P-Channel Power MOSFET (ON Semiconductor)
  • ECH8315 - P-Channel Power MOSFET (ON Semiconductor)
  • ECH8000 - Triode (TELEFUNKEN)
  • ECH81 - Triode - Heptode (Marconi)
  • ECH81 - Triode - Heptode (LA RADIOTECHNIQUE)
Other Datasheets by Sanyo Semicon Device
  • ECH8302 - P-Channel Silicon MOSFET
  • ECH8304 - P-Channel Silicon MOSFET
  • ECH8305 - General-Purpose Switching Device
  • ECH8308 - P-Channel Silicon MOSFET
  • ECH8309 - P-Channel Silicon MOSFET
  • ECH8401 - N-Channel Silicon MOSFET Ultrahigh-Speed Switching Applications
  • ECH8402 - General-Purpose Switching Device Applications
  • ECH8410 - N-Channel Silicon MOSFET

Full PDF Text Transcription

Click to expand full text

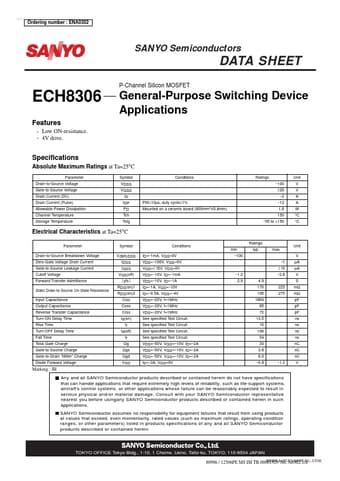

www.DataSheet4U.com Ordering number : ENA0302 ECH8306 SANYO Semiconductors DATA SHEET P-Channel Silicon MOSFET ECH8306 Features • • General-Purpose Switching Device Applications Low ON-resistance. 4V drive. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current (DC) Drain Current (Pulse) Allowable Power Dissipation Channel Temperature Storage Temperature Symbol VDSS VGSS ID IDP PD Tch Tstg PW≤10µs, duty cycle≤1% Mounted on a ceramic board (900mm2!0.8mm) Conditions Ratings --100 ± 20 --2 --12 1.
