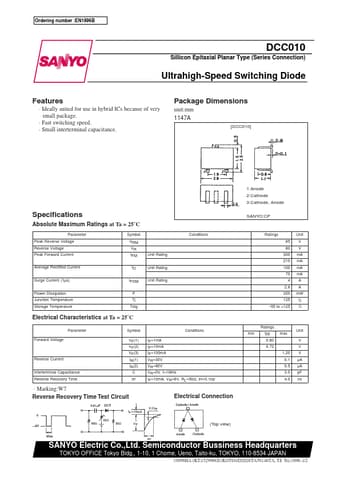

DCC010 - Ultrahigh-Speed Switching Diode

Sanyo Semicon Device

Datasheet Details

Part number	DCC010
Manufacturer	Sanyo Semicon Device
File Size	54.43 KB
Description	Ultrahigh-Speed Switching Diode
Datasheet	DCC010_SanyoSemiconDevice.pdf

Ideally suited for use in hybrid ICs because of very small package.
Fast switching speed.
Small interterminal capacitance. Package Dimensions unit:mm 1147A [DCC010] 1:Anode 2:Cathode 3:Cathode, Anode Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Peak Reverse Voltage Reverse Voltage Peak Forward Current Average Rectified Current Surge Current (1µs) Power Dissipation Junction Temperature Storage Temperature Symbol VRM VR IFM IO IFSM P Tj Tstg Unit Rating Unit.
