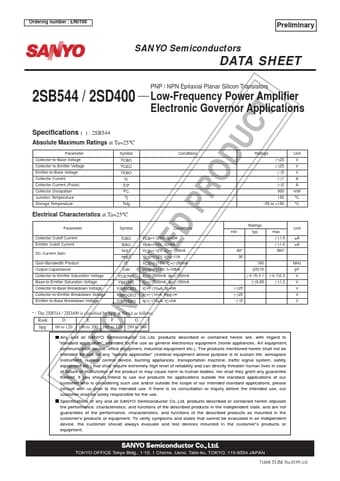

Ordering number : EN0199
2SB544 / 2SD400
Preliminary
SANYO Semiconductors
DATA SHEET
2SB544 / 2SD400
PNP / NPN Epitaxial Planar Silicon Transistors
Low-Frequency Power Amplifier Electronic Governor Applications
Specifications ( ) : 2SB544
Absolute Maximum Ratings at Ta=25°C
Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature
Symbol
VCBO VCEO VEBO
IC ICP PC Tj
Tstg
Electrical Characteristics at Ta=25°C
Conditions
Parameter
Collector Cutoff Current Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product Output Capacitance Collector-to-Emitter Saturation Voltage Base-to-Emitter Saturation Voltage Collector-to-Base Breakdown Voltage Co
D400 Datasheet
