C6144 - NPN Epitaxial Planar Silicon Transistor

Name: C6144
SKU: C6144-824467

Sanyo Semicon Device

The C6144 by Sanyo Semicon Device is a NPN Epitaxial Planar Silicon Transistor. Below is the official datasheet preview.

Datasheet Details

Part number	C6144
Manufacturer	Sanyo Semicon Device
File Size	85.70 KB
Description	NPN Epitaxial Planar Silicon Transistor
Datasheet	C6144-SanyoSemiconDevice.pdf

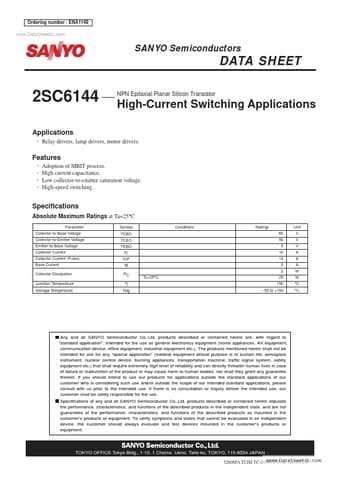

Additional preview pages of the C6144 datasheet.

Adoption of MBIT process. High current capacitance. Low collector-to-emitter saturation voltage. High-speed switching. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP IB PC Tj Tstg Tc=25°C Conditions Ratings 60 50 5 1.
