C4160 2SC4160

C4160 Description

Ordering number:ENN2481C NPN Triple Diffused Planar Silicon Transistor 2SC4160 400V/4A Switching Regulator Applications .

C4160 Features

* High breakdown voltage.
* High reliability.
* Fast switching speed (tf=0.1µs typ).
* Wide ASO.
* Adoption of MBIT process.
* Micaless package facilitating mounting. Package Dimensions unit:mm 2041A [2SC4160] 10.0 3.2 3.5 7.2 4.5 2.8 18.1 16.0 5.6 14.0 1.6 1.2 0.75 1

📥 Download Datasheet

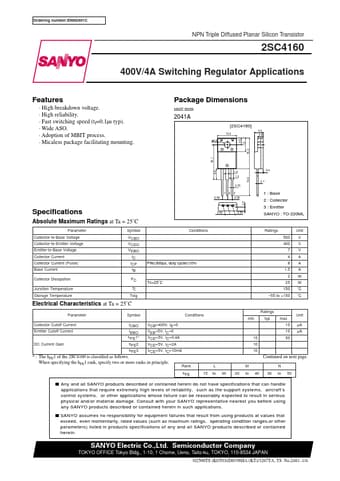

Preview of C4160 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C4160
Manufacturer
Sanyo Semicon Device
File Size
42.90 KB
Datasheet
C4160-SanyoSemiconDevice.pdf
Description
2SC4160
