ALP236FXX - Low-Temperature Polysilicon 2.5-inch TFT LCD Module

Sanyo Semicon Device

Datasheet Details

Part number	ALP236FXX
Manufacturer	Sanyo Semicon Device
File Size	629.73 KB
Description	Low-Temperature Polysilicon 2.5-inch TFT LCD Module

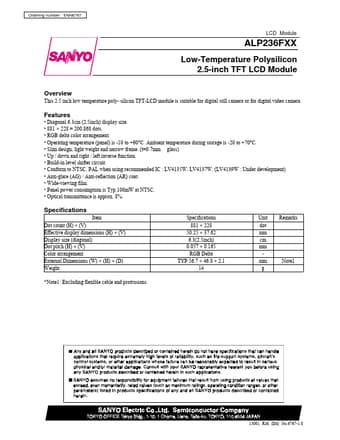

Datasheet	ALP236FXX_SanyoSemiconDevice.pdf

Diagonal 6.3cm (2.5inch) display size.
881 × 228 = 200,868 dots.
RGB delta color arrangement.
Operating temperature (panel) is -10 to +60°C. Ambient temperature during storage is -20 to +70°C.
Slim design, light weight and narrow frame. (t=0.7mm glass).
Up / down and right / left inverse function.
Build-in level shifter circuit.
Conform to NTSC, PAL when using recommended IC : LV4135W, LV4137W, (LV4139W : Under develo.
