A1866 2SA1866

A1866 Description

Ordering number:4721 PNP Epitaxial Planar Silicon Transistor 2SA1866 Muting Circuits, Driver Applications .

A1866 Features

* On-chip bias resistors (R1=47k Ω, R2=47kΩ).
* Very small-sized package making 2SA1866-applied sets small and slim.
* Small ON resistance.
* High gain-bandwidth product f T. Package Dimensions unit:mm 2106A [2SA1866] 1 : Base 2 : Emitter 3 : Collector Specifications Absolute Maxi

📥 Download Datasheet

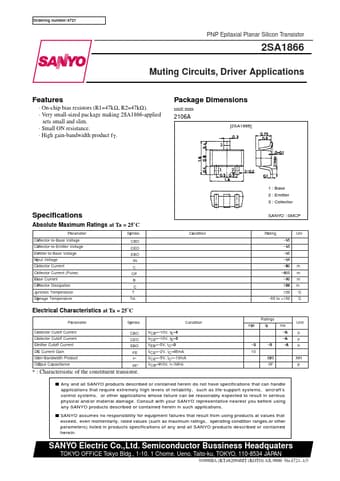

Preview of A1866 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1866
Manufacturer
Sanyo Semicon Device
File Size
137.23 KB
Datasheet
A1866-SanyoSemiconDevice.pdf
Description
2SA1866
