2SJ400 - P-Channel MOSFET

Sanyo Semicon Device

📥 Download Datasheet

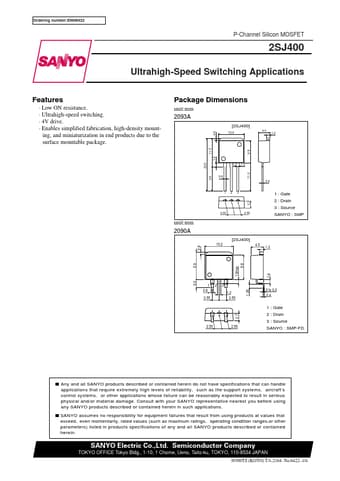

2SJ400 Datasheet Preview — Preview of 2SJ400 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SJ400
Manufacturer	Sanyo Semicon Device
File Size	43.08 KB
Description	P-Channel MOSFET
Datasheet	2SJ400_SanyoSemiconDevice.pdf

2SJ400 Product details

Features

Low ON resistance.
Ultrahigh-speed switching.
4V drive.
Enables simplified fabrication, high-density mounting, and miniaturization in end products due to the surface mountable package. Package Dimensions unit:mm 2093A [2SJ400] 0.9 10.2 4.5 1.3 11.5 1.6 20.9 1.2 9.4 0.8 11.0 8.8 0.4 1 2 3 2.55 2.55 1 : Gate 2 : Drain 3 : Source SANYO : SMP unit:mm 2090A [2SJ400] 0.8 10.2 4.5 1.3 1.5max 8.8 9.9 2.7 3.0 2.55 1.2 2.55 1.35 1 0.8 2 3 0 to 0.3 0.4 2.55.
