2SD1802 - PNP/NPN Epitaxial Planar Silicon Transistors

Features

  • Adoption of FBET, MBIT processes.
  • Large currrent capacity and wide ASO.
  • Low collector-to-emitter saturation voltage.
  • Fast switching speed.

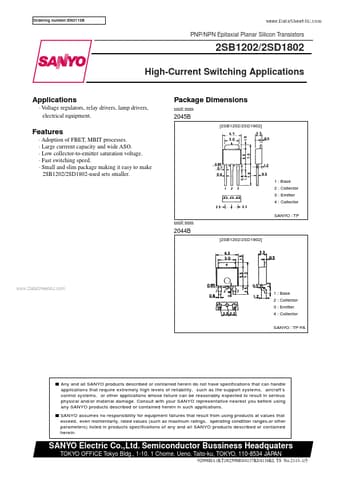

  • Small and slim package making it easy to make 2SB1202/2SD1802-used sets smaller. 1 : Base 2 : Collector 3 : Emitter 4 : Collector SANYO : TP unit:mm 2044B [2SB1202/2SD1802] www. DataSheet4U. com 1 : Base 2 : Collector 3 : Emitter 4 : Collector SANYO : TP-FA Any and all SANYO products described or contained herein do not have spe.
