2SD1801 - PNP/NPN Epitaxial Planar Silicon Transistors

Features

  • Adoption of FBET, MBIT processes.
  • Large current capacitance and wide ASO.
  • Low collector-to-emitter saturation voltage.
  • Fast switching speed.
  • Small and slim package making it easy to make 2SB1201/2SD1801-used sets smaller Specifications ( ): 2SB1201 Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Symbol VCBO VCEO VEBO IC ICP.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SD1801 - Bipolar Transistor (ON Semiconductor)
  • 2SD1801 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 2SD180 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 2SD1802 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 2SD1802 - NPN Transistor (TRANSYS)
  • 2SD1802 - NPN Epitaxial Planar Silicon Transistors (GME)
  • 2SD1802 - Bipolar Transistor (ON Semiconductor)
  • 2SD1802 - NPN SILICON TRANSISTOR (UTC)
  • 2SD1802 - NPN Transistor (Weitron Technology)
  • 2SD1803 - NPN Transistors (Kexin)
Other Datasheets by Sanyo Semicon Device
  • 2SD1800 - NPN Epitaxial Silicon Transistor
  • 2SD1802 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SD1803 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SD1804 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SD1805 - NPN Epitaxial Planar Silicon Transistor
  • 2SD1806 - NPN Epitaxial Silicon Transistor
  • 2SD1815 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SD1816 - PNP/NPN Transistor

Full PDF Text Transcription

Click to expand full text

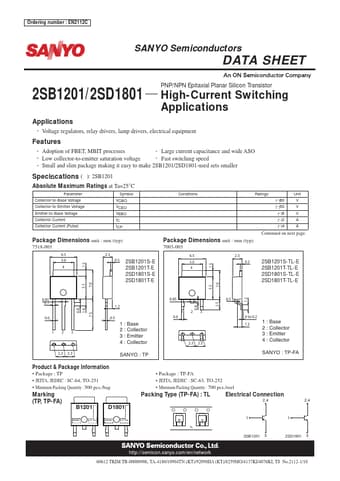

Ordering number : EN2112C 2SB1201/2SD1801 SANYO Semiconductors DATA SHEET 2SB1201/2SD1801 PNP/NPN Epitaxial Planar Silicon Transistor High-Current Switching Applications Applications • Voltage regulators, relay drivers, lamp drivers, electrical equipment Features • Adoption of FBET, MBIT processes • Large current capacitance and wide ASO • Low collector-to-emitter saturation voltage • Fast switching speed • Small and slim package making it easy to make 2SB1201/2SD1801-used sets smaller Specifications ( ): 2SB1201 Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Symbol VCBO VCEO VEBO IC ICP Conditions Ratings (--)60 (--)50 (--)6 (--)2 (--)4 Unit V V V A A
