2SC6015 - NPN Epitaxial Planar Silicon Transistor

Key Features

  • Adoption of MBIT process. Large current capacitance. Low collector-to-emitter saturation voltage. High-speed switching. Narrow hFE range. High allowable power dissipation. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation Junction Temperature Storage Temperature Symbol.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC6010 Silicon NPN Transistor Toshiba
2SC6011 NPN Transistor INCHANGE
2SC6011 Audio Amplification Transistor Allegro MicroSystems
2SC6011 Audio Amplification Transistor Sanken
2SC6011A PNP PowerTransistor Sanken

Other Datasheets by SANYO (now Panasonic)

Part Number Description
2SC6013 NPN Epitaxial Planar Silicon Transistor
2SC6014 NPN Epitaxial Planar Silicon Transistor
2SC6016 NPN Epitaxial Planar Silicon Transistor
2SC6017 NPN Epitaxial Planar Silicon Transistors
2SC6019 NPN Epitaxial Planar Silicon Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

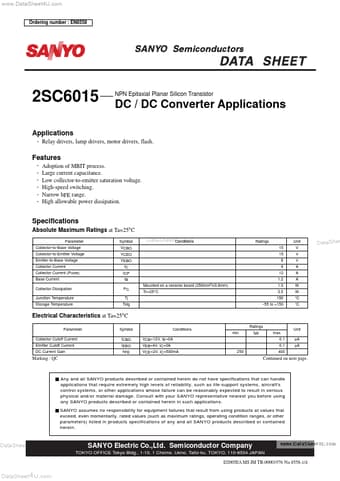

www.DataSheet4U.com Ordering number : EN8558 2SC6015 2SC6015 Applications • NPN Epitaxial Planar Silicon Transistor DC / DC Converter Applications Relay drivers, lamp drivers, motor drivers, flash. Features • • • • • • Adoption of MBIT process. Large current capacitance. Low collector-to-emitter saturation voltage. High-speed switching. Narrow hFE range. High allowable power dissipation. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP IB PC Tj Tstg Mounted on a ceramic board (250mm2!0.8mm) Tc=25°C DataSheet4U.
