2SC5999 - NPN Transistors

Features

  • Adoption of MBIT process. Large current capacitance. Low collector-to-emitter saturation voltage. High-speed switching. Surface mount type. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCES VC.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SC5993 NPN Transistor INCHANGE
2SC5993 Silicon NPN Transistor Panasonic Semiconductor
2SC5994 NPN Single Bipolar Transistor ON Semiconductor
2SC5998 NPN Transistor Renesas
2SC5900 Silicon NPN Transistor Inchange Semiconductor

Other Datasheets by SANYO (now Panasonic)

Part Number Description
2SC5991 NPN Transistor
2SC5994 NPN Transistor
2SC5900 NPN TRANSISTOR
2SC5915 NPN EPITAXIAL PLANAR SILICON TRANSISTOR
2SC5932 NPN Triple Diffused Planar Silicon Transistor

Full PDF Text Transcription

Click to expand full text

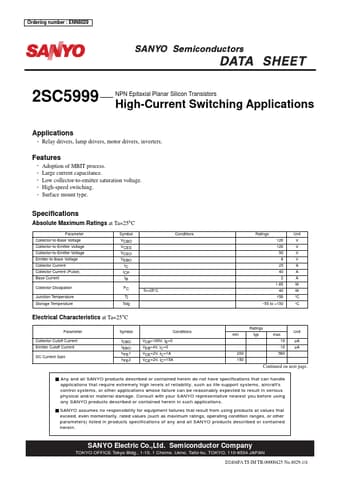

Ordering number : ENN8029 2SC5999 2SC5999 Applications • NPN Epitaxial Planar Silicon Transistors High-Current Switching Applications Relay drivers, lamp drivers, motor drivers, inverters. Features • • • • • Adoption of MBIT process. Large current capacitance. Low collector-to-emitter saturation voltage. High-speed switching. Surface mount type. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCES VCEO VEBO IC ICP IB PC Tj Tstg Tc=25°C Conditions Ratings 120 120 50 6 25 40 2 1.
