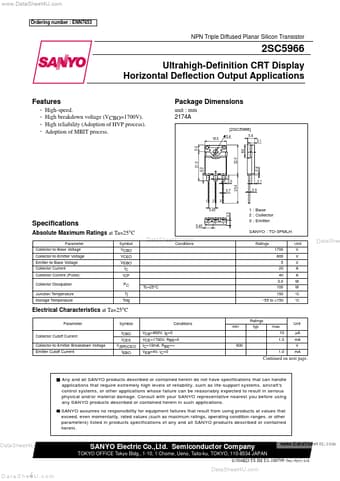

2SC5966 - NPN SILICON TRANSISTOR

Sanyo Semicon Device

Datasheet Details

Package Dimensions unit : mm 2174A [2SC5966] 16.0 5.0 High-speed. High breakdown voltage (VCBO=1700V). High reliability (Adoption of HVP process). Adoption of MBIT process. 3.4 5.6 3.1 8.0 22.0 21.0 4.0 2.8 2.0 20.4 0.7 0.9 1 2 5.45 3 Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junctio.
