2SC5227 - NPN TRANSISTOR

Sanyo Semicon Device

📥 Download Datasheet

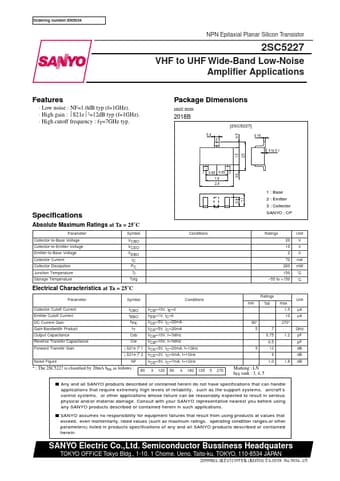

2SC5227 Datasheet Preview — Preview of 2SC5227 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC5227
Manufacturer	Sanyo Semicon Device
File Size	125.35 KB
Description	NPN TRANSISTOR
Datasheet	2SC5227_SanyoSemiconDevice.pdf

2SC5227 Product details

Features

Low noise : NF=1.0dB typ (f=1GHz).
High gain : S21e2=12dB typ (f=1GHz).
High cutoff frequency : fT=7GHz typ. Package Dimensions unit:mm 2018B [2SC5227] 0.4 3 0.16 0 to 0.1 0.5 1.5 0.5 2.5 Specifications 1 0.95 0.95 2 1.9 2.9 0.8 1.1 1 : Base 2 : Emitter 3 : Collector SANYO : CP Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Dissipation Junction Temperature.
