2SC4404 - NPN Transistor

Sanyo Semicon Device

📥 Download Datasheet

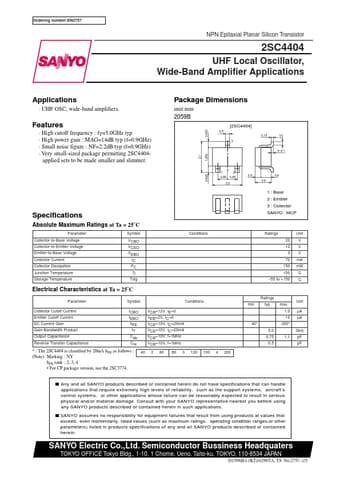

2SC4404 Datasheet Preview — Preview of 2SC4404 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC4404
Manufacturer	Sanyo Semicon Device
File Size	111.75 KB
Description	NPN Transistor
Datasheet	2SC4404_SanyoSemiconDevice.pdf

2SC4404 Product details

Features

High cutoff frequency : fT=5.0GHz typ.
High power gain : MAG=14dB typ (f=0.9GHz).
Small noise figure : NF=2.2dB typ (f=0.9GHz).
Very small-sized package permitting 2SC4404- applied sets to be made smaller and slimmer. 2.1 1.250 0.425 Package Dimensions unit:mm 2059B [2SC4404] 0.3 3 0.15 0.2 0~0.1 0.425 12 0.65 0.65 2.0 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Volt.
