2SC4005 - Silicon NPN Transistor

Sanyo Semicon Device

📥 Download Datasheet

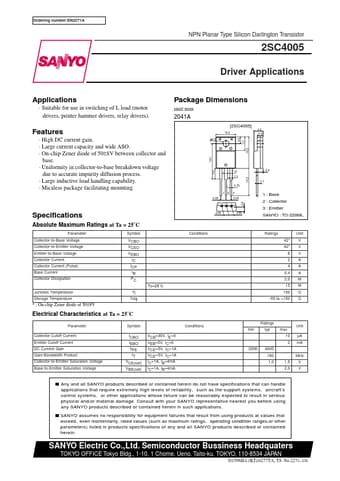

2SC4005 Datasheet Preview — Preview of 2SC4005 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC4005
Manufacturer	Sanyo Semicon Device
File Size	84.38 KB
Description	Silicon NPN Transistor
Datasheet	2SC4005_SanyoSemiconDevice.pdf

2SC4005 Product details

Features

High DC current gain.
Large current capacity and wide ASO.
On-chip Zener diode of 50±8V between collector and base.
Uniformity in collector-to-base breakdown voltage due to accurate impurity diffusion process.
Large inductive load handling capability.
Micaless package facilitating mounting. Specifications 18.1 5.6 [2SC4005] 4.5 10.0 2.8 3.2 3.5 7.2 16.0 1.6 1.2 0.75 123 2.55 2.55 2.55 2.55 2.4 14.0 2.4 0.7 1 : Base 2 : Collector 3 : Emitter SANYO : TO-22.
