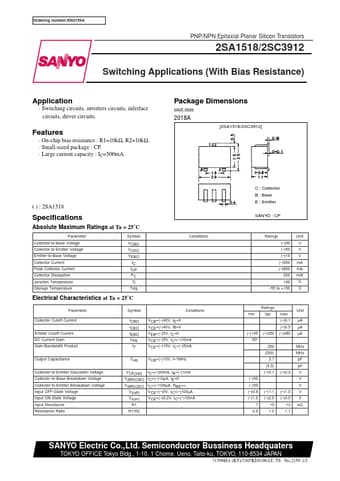

2SC3912 - PNP/NPN Epitaxial Planar Silicon Transistors

Features

  • On-chip bias resistance : R1=10kΩ, R2=10kΩ.
  • Small-sized package : CP.
  • Large current capacity : IC=500mA. Package Dimensions unit:mm 2018A [2SA1518/2SC3912] ( ) : 2SA1518 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Peak Collector Current Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP PC Tj Tstg Electrical Characte.
