2SC3253, PNP/NPN Epitaxial Planar Silicon Transistors

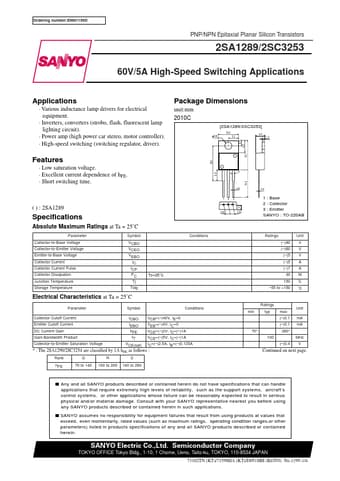

Ordering number:ENN1199D PNP/NPN Epitaxial Planar Silicon Transistors 2SA1289/2SC3253 60V/5A High-Speed Switching Applications Applications Various inductance lamp drivers for electrical equipment.

Inverters, converters (strobo, flash, fluorescent lamp lighting circuit).

Power amp (high power car stereo, motor controller).

High-speed switching (switching regulator, driver).

Package Dimensions unit:mm 2010C [2SA1289/2SC3253] 10.2 3.6 5.1 4.5 1.3 2.7 6.3 15.1 Fea

2SC3253 Features

* Low saturation voltage.
