2SC3086 - NPN Triple Diffused Planar Silicon Transistor

Features

  • High breakdown voltage (VCBO≥800V).
  • Fast switching speed.
  • Wide ASO. Package Dimensions unit:mm 2010C [2SC3086] Specifications JEDEC : TO-220AB EIAJ : SC-46 1 : Base 2 : Collector 3 : Emitter Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Conditions Ratings Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation VCBO VCEO VEBO IC ICP IB PC PW≤300µs, Duty Cycl.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SC3086 - NPN Transistor (INCHANGE)
  • 2SC3086 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3082K - NPN Silicon Transistor (ROHM)
  • 2SC3083 - NPN Transistor (INCHANGE)
  • 2SC3083 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3085 - Silicon NPN Power Transistor (Inchange Semiconductor)
  • 2SC3085 - NPN Triple Diffused Planar Silicon Transistor (Sanyo)
  • 2SC3087 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC3087 - NPN Transistor (INCHANGE)
  • 2SC3088 - NPN Transistor (INCHANGE)
Other Datasheets by Sanyo Semicon Device
  • 2SC3083 - NPN Triple Diffused Planar Silicon Transistor
  • 2SC3087 - NPN Triple Diffused Planar Silicon Transistor
  • 2SC3088 - NPN Triple Diffused Planar Silicon Transistor
  • 2SC3089 - NPN Triple Diffused Planar Silicon Transistor
  • 2SC3000 - NPN Epitaxial Planar Silicon Transistor
  • 2SC3038 - NPN Triple Diffused Planar Silicon Transistor
  • 2SC3039 - NPN Triple Diffused Planar Silicon Transistor
  • 2SC3040 - NPN Triple Diffused Planar Silicon Transistor

Full PDF Text Transcription

Click to expand full text

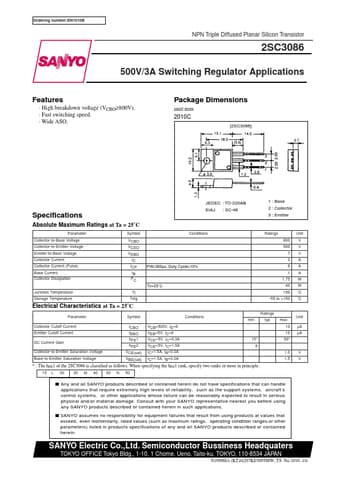

Ordering number:EN1010B NPN Triple Diffused Planar Silicon Transistor 2SC3086 500V/3A Switching Regulator Applications Features · High breakdown voltage (VCBO≥800V). · Fast switching speed. · Wide ASO. Package Dimensions unit:mm 2010C [2SC3086] Specifications JEDEC : TO-220AB EIAJ : SC-46 1 : Base 2 : Collector 3 : Emitter Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Conditions Ratings Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation VCBO VCEO VEBO IC ICP IB PC PW≤300µs, Duty Cycle≤10% Tc=25˚C 800 500 7 3 6 1 1.
