2SA2037 - PNP / NPN Epitaxial Planar Silicon Transistors

Features

  • Adoption of MBIT process.
  • Large current capacity.
  • Low collector-to-emitter saturation voltage.
  • High-speed switching.
  • High allowable power dissipation. Specifications ( ):2SA2037 Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SA203 - PNP Transistor (ETC)
  • 2SA2030 - Low frequency transistor (Rohm)
  • 2SA2031 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SA2031 - Power Transistor (Inchange Semiconductor)
  • 2SA2034 - Silicon PNP Transistor (Toshiba)
  • 2SA2039 - Bipolar Transistor (ON Semiconductor)
  • 2SA2039 - Silicon PNP Power Transistor (Inchange Semiconductor)
  • 2SA2002 - Silicon PNP Epitaxial Type Transistor (IDC)
  • 2SA2004 - Silicon PNP Transistor (Panasonic Semiconductor)
  • 2SA2004 - PNP Transistor (INCHANGE)
Other Datasheets by Sanyo Semicon Device
  • 2SA2031 - NPN Triple Diffused Planar Silicon Transistor
  • 2SA2039 - PNP / NPN Epitaxial Planar Silicon Transistors
  • 2SA2011 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA2012 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA2013 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA2014 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA2015 - PNP/NPN Epitaxial Planar Silicon Transistors
  • 2SA2016 - PNP/NPN Epitaxial Planar Silicon Transistors

Full PDF Text Transcription

Click to expand full text

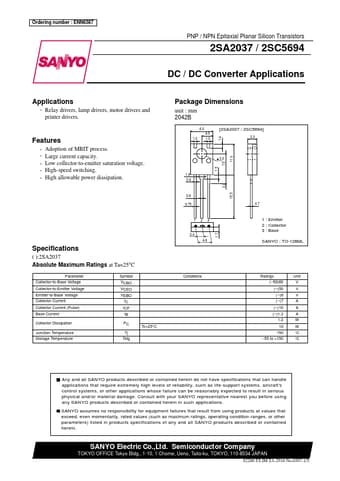

Ordering number : ENN6587 2SA2037 / 2SC5694 PNP / NPN Epitaxial Planar Silicon Transistors 2SA2037 / 2SC5694 DC / DC Converter Applications Applications • Relay drivers, lamp drivers, motor drivers and printer drivers. Features • Adoption of MBIT process. • Large current capacity. • Low collector-to-emitter saturation voltage. • High-speed switching. • High allowable power dissipation. Specifications ( ):2SA2037 Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Base Current Collector Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC ICP IB PC Tj Tstg Tc=25°C Package Dimensions unit : mm 2042B 8.0 4.0 1.0 1.0 [2SA2037 / 2SC5694] 3.3 1.
