SH2863-0441 - Stepping Motors

Download the SH2863-0441 datasheet PDF. This datasheet also covers the SH28610441 variant, as both devices belong to the same stepping motors family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SH28610441.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SH2863-0441
Manufacturer Sanyo Denki
File Size 99.28 KB
Description Stepping Motors
Datasheet download datasheet SH2863-0441 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SH2001 high voltage high current drivers National Semiconductor
SH2002 high voltage high current drivers National Semiconductor
SH2002-DC70A Near edge thermal printhead Rohm
SH2002-DC90A Near edge thermal printhead Rohm
SH2002P high voltage high current drivers National Semiconductor

Other Datasheets by Sanyo Denki

Part Number Description
SH2863-0411 Stepping Motors
SH2863-0911 Stepping Motors
SH2863-0941 Stepping Motors
SH2863-5011 Stepping Motors
SH2863-5041 Stepping Motors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

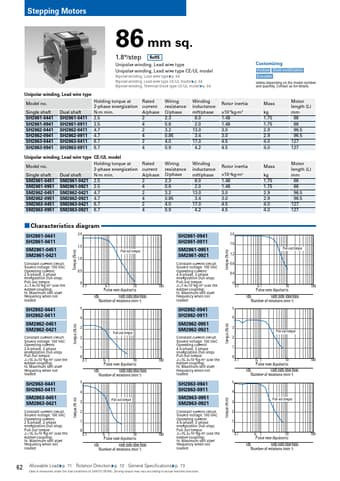

Stepping Motors 86 mm sq. 1.8°/step RoHS Unipolar winding, Lead wire type Unipolar winding, Lead wire type CE/UL model Bipolar winding, Lead wire type p. 64 Bipolar winding, Lead wire type CE/UL model p. 64 Bipolar winding, Terminal block type CE/UL model p. 64 Unipolar winding, Lead wire type Model no. Holding torque at 2-phase energization Single shaft Dual shaft N·m min. SH2861-0441 SH2861-0411 2.5 SH2861-0941 SH2861-0911 2.5 SH2862-0441 SH2862-0411 4.7 SH2862-0941 SH2862-0911 4.7 SH2863-0441 SH2863-0411 6.7 SH2863-0941 SH2863-0911 6.7 Rated current A/phase 2 4 2 4 2 4 Wiring resistance Ω/phase 2.3 0.6 3.2 0.85 4.0 0.9 Winding inductance mH/phase 8.0 2.0 13.0 3.4 17.0 4.2 Rotor inertia ×10-4kg·m2 1.48 1.48 3.0 3.0 4.5 4.
