DP42F781D, DP42F552S The 5-phase stepping Set

Sanyo Denki

Description

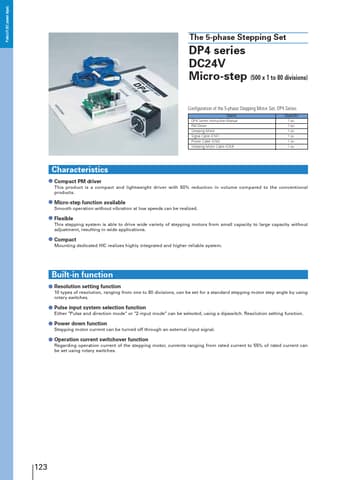

Pulse I/F (DC power input) The 5-phase Stepping Set DP4 series DC24V Micro-step (500 x 1 to 80 divisions) Configuration of the 5-phase Stepping Moto.

📥 Download Datasheet

DP42F781D Datasheet Preview — This datasheet PDF includes multiple part numbers: DP42F781D, DP42F552S. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: DP42F781D, DP42F552S
Manufacturer: Sanyo Denki
File Size: 91.17 KB
Datasheet: DP42F552S-SanyoDenki.pdf
Description: The 5-phase stepping Set
Note: This datasheet PDF includes multiple part numbers: DP42F781D, DP42F552S.
Please refer to the document for exact specifications by model.

Applications

* Compact Mounting dedicated HIC realizes highly integrated and higher reliable system. Built-in function Resolution setting function 10 types of resolution, ranging from one to 80 divisions, can be set for a standard stepping motor step angle b
