SRE60N065FSUD6 - 60A 650V Trench Fieldstop IGBT

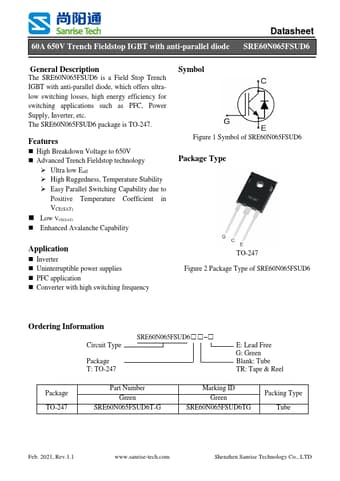

The SRE60N065FSUD6 by Sanrise is a 60A 650V Trench Fieldstop IGBT. Below is the official datasheet preview.

Datasheet Details

Part number	SRE60N065FSUD6
Manufacturer	Sanrise
File Size	843.16 KB
Description	60A 650V Trench Fieldstop IGBT
Datasheet	SRE60N065FSUD6-Sanrise.pdf
Additional preview pages of the SRE60N065FSUD6 datasheet.

SRE60N065FSUD6 Product details

Description

The SRE60N065FSUD6 is a Field Stop Trench IGBT with anti-parallel diode, which offers ultralow switching losses, high energy efficiency for switching applications such as PFC, Power Supply, Inverter, etc.

Features

High Breakdown Voltage to 650V.
Advanced Trench Fieldstop technology.
Ultra low Eoff.
High Ruggedness, Temperature Stability.
Easy Parallel Switching Capability due to Positive Temperature Coefficient in VCE(SAT).
Low VCE(SAT).
Enhanced Avalanche Capability Symbol Figure 1 Symbol of SRE60N065FSUD6 Package Type.
