STRW6735 - Quasi-Resonant Topology Primary Switching Regulators

Download the STRW6735 datasheet PDF. This datasheet also covers the STR-W6735 variant, as both devices belong to the same quasi-resonant topology primary switching regulators family and are provided as variant models within a single manufacturer datasheet.

Description

The STR-W6735 is a quasi-resonant topology IC designed for SMPS applications.

It shows lower EMI noise characteristics than conventional PWM solutions, especially at greater than 2 MHz.

Features

  • Quasi-resonant topology IC  Low EMI noise and soft switching.
  • Bottom-skip operation  Improved system efficiency over the entire output load by avoiding increase of switching frequency.
  • Standby burst mode operation => Lowers input power at very light output load condition.
  • Avalanche-guaranteed MOSFET  Improves systemlevel reliability and does not require VDSS derating.
  • 500 V / 0.57 Ω, 160 W (120 VAC input) Continued on the next page… Package: 6-pin TO-220.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STR-W6735-Sanken.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number STRW6735
Manufacturer Sanken
File Size 225.98 KB
Description Quasi-Resonant Topology Primary Switching Regulators
Datasheet download datasheet STRW6735 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
STRW6735 Quasi-Resonant Topology Primary Switching Regulators Allegro MicroSystems
STRW6750 Power-IC Sanken electric
STRW6750 Off-Line Quasi-Resonant Switching Regulators Allegro MicroSystems
STRW6753 Universal Input / 58W Off-line Quasi Resonant Flyback Switching Regulator Allegro Microsystems
STRW6754 Universal Input 100W OffLine Quasi-Resonant Flyback Switching Regulator Allegro

Other Datasheets by Sanken

Part Number Description
STRW6735N power MOSFET
STRW6734 power MOSFET
STRW6723N power MOSFET
STRW6750F Power-IC
STRW6753 Quasi-Resonant Topology Primary Switching Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

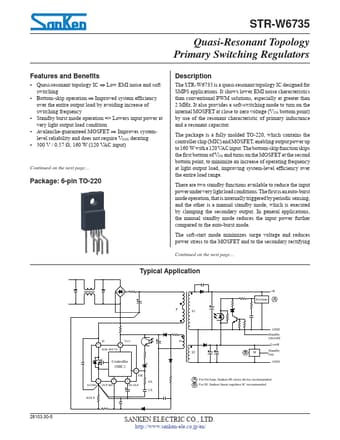

STR-W6735 Quasi-Resonant Topology Primary Switching Regulators Features and Benefits ▪ Quasi-resonant topology IC  Low EMI noise and soft switching ▪ Bottom-skip operation  Improved system efficiency over the entire output load by avoiding increase of switching frequency ▪ Standby burst mode operation => Lowers input power at very light output load condition ▪ Avalanche-guaranteed MOSFET  Improves systemlevel reliability and does not require VDSS derating ▪ 500 V / 0.57 Ω, 160 W (120 VAC input) Continued on the next page… Package: 6-pin TO-220 Description The STR-W6735 is a quasi-resonant topology IC designed for SMPS applications. It shows lower EMI noise characteristics than conventional PWM solutions, especially at greater than 2 MHz.
