STR6A169HVD - Off-Line PWM Controller

Download the STR6A169HVD datasheet PDF. This datasheet also covers the STR6A153MV variant, as both devices belong to the same off-line pwm controller family and are provided as variant models within a single manufacturer datasheet.

Description

The STR6A100xV/xVD series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

The operating mode of the IC automatically changes to green-mode or burst oscillation mode according to load in order to improve the all load efficiency.

Features

  • Improving Circuit Efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF).
  • Current Mode Type PWM Control.
  • Soft Start Function.
  • Adjustable Standby Operating Point No Load Power Consumption < 15 mW.
  • Operation Mode Fixed Frequency: 65 kHz / 100 kHz Green-Mode: 25 kHz to 65 kHz / 25 kHz to 100 kHz Burst Oscillation Mode.
  • Random Switching Function.
  • Slope Compensation Function.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STR6A153MV-Sanken.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number STR6A169HVD
Manufacturer Sanken
File Size 638.10 KB
Description Off-Line PWM Controller
Datasheet download datasheet STR6A169HVD Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
STR6553 switching power supply controller ETC
STR6653 STR-F6653 Allegro Microsystems
STR6654 STR-6654 Allegro Microsystems
STR6707 OFF-LINE SWITCHING REGULATORS WITH BIPOLAR SWITCHING TRANSISTOR Allegro
STR-4A60S Sensitive Gate Triacs SemiWell Semiconductor

Other Datasheets by Sanken

Part Number Description
STR6A169HZ Off-Line PWM Controllers
STR6A161HV Off-Line PWM Controller
STR6A161HVD Off-Line PWM Controller
STR6A161HZ Off-Line PWM Controller
STR6A163HVD Off-Line PWM Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

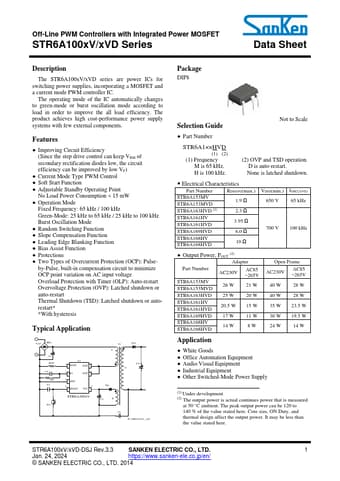

Off-Line PWM Controllers with Integrated Power MOSFET STR6A100xV/xVD Series Data Sheet Description The STR6A100xV/xVD series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC. The operating mode of the IC automatically changes to green-mode or burst oscillation mode according to load in order to improve the all load efficiency. The product achieves high cost-performance power supply systems with few external components.
