STR3W424MXD, STR3W422MXD Off-Line PWM Controllers

STR3W424MXD Description

Off-Line PWM Controllers with Integrated Power MOSFET STR3W400MXD Series Data Sheet .
The STR3W400MXD series is power IC for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC.

STR3W424MXD Features

* Bare Lead Frame: Pb-free (RoHS Compliant)
* Current Mode Type PWM Control
* Improving circuit efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF)
* Automatically changed operation mode in res

STR3W424MXD Applications

* White Goods
* Office Automation Equipment
* Industrial Equipment

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STR3W424MXD, STR3W422MXD. Please refer to the document for exact specifications by model.

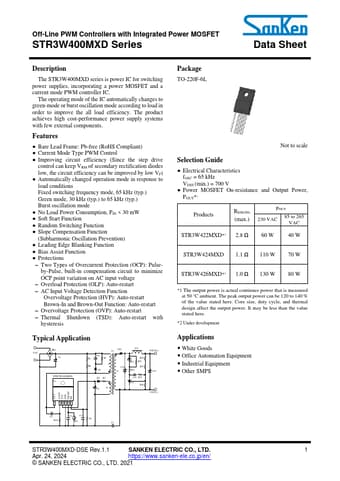

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STR3W424MXD, STR3W422MXD
Manufacturer
Sanken ↗
File Size
488.98 KB
Datasheet
STR3W422MXD-Sanken.pdf
Description
Off-Line PWM Controllers
Note
This datasheet PDF includes multiple part numbers: STR3W424MXD, STR3W422MXD.
Please refer to the document for exact specifications by model.
