STR3A462HDL, STR3A461HDL, Off-Line PWM Controller

Off-Line PWM Controllers with Integrated Power MOSFET STR3A46xHL/HDL Series Data Sheet .
The STR3A46xHL/HDL series are power ICs for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC.

STR3A461HDL-Sanken.pdf

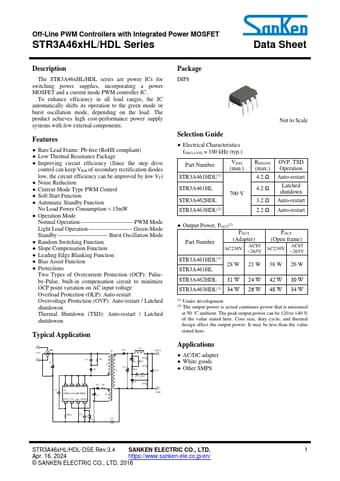

STR3A462HDL Datasheet Preview — This datasheet PDF includes multiple part numbers: STR3A462HDL, STR3A461HDL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STR3A462HDL, STR3A461HDL

Manufacturer:

Sanken ↗

File Size:

703.86 KB

Description:

Off-Line PWM Controller

Note:

This datasheet PDF includes multiple part numbers: STR3A462HDL, STR3A461HDL.
Please refer to the document for exact specifications by model.

Features

* Bare Lead Frame: Pb-free (RoHS compliant)
* Low Thermal Resistance Package
* Improving circuit efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF)
* Noise Reduction
* Current Mode Type PW

Applications

* AC/DC adapter
* White goods
