STR3A455, STR3A400 Off-Line PWM Controllers

STR3A455 Description

Off-Line PWM Controllers with Integrated Power MOSFET STR3A400 Series Data Sheet .
The STR3A400 series are power ICs for switching power supplies, incorporating a MOSFET and a current mode PWM controller IC.

STR3A455 Features

* Low Thermal Resistance Package
* Improving circuit efficiency (Since the step drive control can keep VRM of secondary rectification diodes low, the circuit efficiency can be improved by low VF)
* Current Mode Type PWM Control
* Soft Start Function
* Automatic Standby Function N

STR3A455 Applications

* AC/DC adapter
* White goods

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STR3A455, STR3A400. Please refer to the document for exact specifications by model.

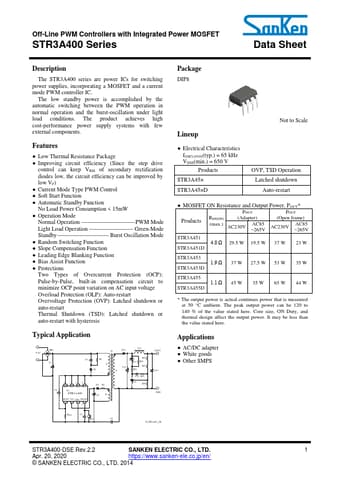

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STR3A455, STR3A400
Manufacturer
Sanken ↗
File Size
865.02 KB
Datasheet
STR3A400-Sanken.pdf
Description
Off-Line PWM Controllers
Note
This datasheet PDF includes multiple part numbers: STR3A455, STR3A400.
Please refer to the document for exact specifications by model.
