STR-W6765N Power IC for Quasi-Resonant Type Switching Power Supply

STR-W6765N Description

Power IC for Quasi-Resonant Type Switching Power Supply with High Efficiency and Low Noise in Full Load Range STR-W6765N *General .
The STR-W6765N is power IC for quasi-resonant type switching power supply, incorporating a power MOSFET and a controller IC.

STR-W6765N Features

* Multi operation mode The operation mode switching according to load conditions achieves the optimal high efficiency and low noise power supply systems across the full load range.
* Current mode control
* Built-in PWM oscillator The PWM operates with the minimum frequency of around 22kH

STR-W6765N Applications

* Switching power supplies for
* LCD-TVs, PDP-TVs, CRT-TVs and Digital consumer equipment
* Home appliances
* OA equipments
* Industry machines
* Communication devices

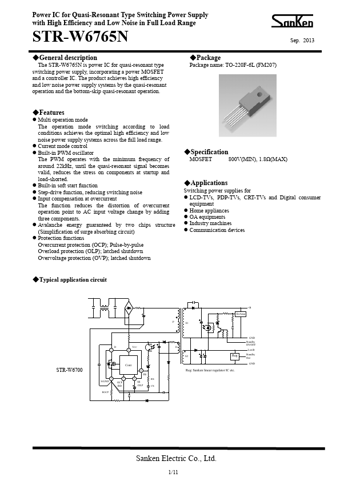

* Typical application circuit STR-W6700 D 1 VCC 4 3 S/GND ROCP Cont 7 OCP /BD 6 FB 5 SS /OLP RX CX P
