SMA6820MH - High Voltage 3-phase Motor Driver

Sanken

The SMA6820MH by Sanken is a High Voltage 3-phase Motor Driver. Below is the official datasheet preview.

📥 Download Datasheet

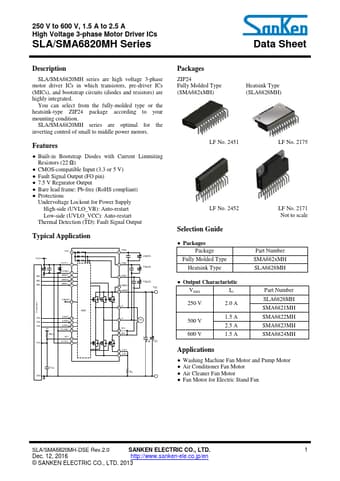

SMA6820MH High Voltage 3-phase Motor Driver by Sanken - Datasheet Preview — Official preview page of the **SMA6820MH** High Voltage 3-phase Motor Driver datasheet (Sanken).

Datasheet Details

Part number	SMA6820MH
Manufacturer	Sanken
File Size	401.20 KB
Description	High Voltage 3-phase Motor Driver
Datasheet	SMA6820MH-Sanken.pdf
Additional preview pages of the SMA6820MH datasheet.

SMA6820MH Product details

Description

SLA/SMA6820MH series are high voltage 3-phase motor driver ICs in which transistors, pre-driver ICs (MICs), and bootstrap circuits (diodes and resistors) are highly integrated.

Features

Built-in Bootstrap Diodes with Current Limmiting Resistors (22 Ω).
CMOS-compatible Input (3.3 or 5 V).
Fault Signal Output (FO pin).
7.5 V Regurator Output.
Bare lead frame: Pb-free (RoHS compliant).
Protections Undervoltage Lockout for Power Supply High-side (UVLO_VB): Auto-restart Low-side (UVLO_VCC): Auto-restart Thermal Detection (TD): Fault Signal Output Typical.
