SECU1611C-N20 - Surface Mount LED

Datasheet Summary

Description

The SECU1611C-N20 is a surface mount deep red LED.

Features

  • Color ----------------------------------------------Deep Red.
  • Luminous Intensity, IV----204 mcd (typ. ) (IF = 20 mA).
  • Forward Voltage, VF--------- 2.0 V (typ. ) (IF = 20 mA).
  • Dominant Wavelength, λD ----------------------- 637 nm.
  • Viewing Angle, 2θ1/2------------------------------ 140 deg.
  • MSL 3.
  • RoHS Compliant.
  • Pb-free, Reflow Soldering.
  • High Reliability.

📥 Download Datasheet

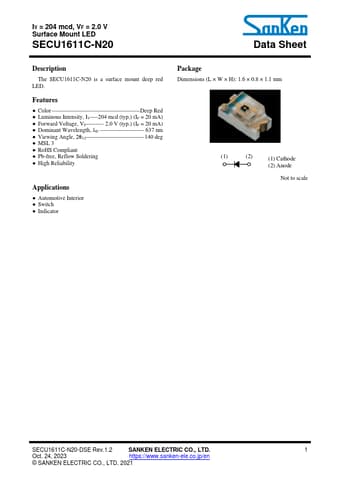

Datasheet preview – SECU1611C-N20

Datasheet Details

Part number SECU1611C-N20
Manufacturer Sanken
File Size 172.08 KB
Description Surface Mount LED
Datasheet download datasheet SECU1611C-N20 Datasheet
Additional preview pages of the SECU1611C-N20 datasheet.

📁 Similar Datasheet

Other Datasheets by Sanken

Full PDF Text Transcription

Click to expand full text
IV = 204 mcd, VF = 2.0 V Surface Mount LED SECU1611C-N20 Data Sheet Description The SECU1611C-N20 is a surface mount deep red LED. Features ● Color ----------------------------------------------Deep Red ● Luminous Intensity, IV----204 mcd (typ.) (IF = 20 mA) ● Forward Voltage, VF--------- 2.0 V (typ.) (IF = 20 mA) ● Dominant Wavelength, λD ----------------------- 637 nm ● Viewing Angle, 2θ1/2------------------------------ 140 deg ● MSL 3 ● RoHS Compliant ● Pb-free, Reflow Soldering ● High Reliability Applications ● Automotive Interior ● Switch ● Indicator Package Dimensions (L × W × H): 1.6 × 0.8 × 1.1 mm (1) (2) (1) Cathode (2) Anode Not to scale SECU1611C-N20-DSE Rev.1.2 SANKEN ELECTRIC CO., LTD. 1 Oct. 24, 2023 https://www.sanken-ele.co.jp/en © SANKEN ELECTRIC CO., LTD.
