SCM3615C11, SCM3000C 3-phase Brushless Motor Driver ICs

SCM3615C11 Description

600 V, 10 A / 15 A 3-phase Brushless Motor Driver ICs SCM3000C Series Data Sheet .
The SCM3000C series are 3-phase brushless motor driver ICs in which output transistors, a pre-driver IC (MIC), bootstrap diodes with current-limiting.

SCM3615C11 Features

* Built-in Thermistor
* Built-in Bootstrap Diodes
* CMOS-compatible Input (3.3 V or 5 V)
* Dead Time: 0.9 µs (min. )
* Bare Lead Frame: Pb-free (RoHS Compliant)
* Isolaton Voltage: 2000 V (for 1 min)
* In Case of Malfunction, All Outputs Shut Down at Once
* Fault Signa

SCM3615C11 Applications

* For motor drives such as:
* Refrigerator Compressor Motor
* Air Conditioner Compressor Motor
* Washing Machine Main Motor
* Fan Motor
* Pump Motor LS1 20 LS2 21 22 LS3 RS SCM3000C-DSE Rev.1.2 SANKEN ELECTRIC CO. , LTD. 1 Aug. 21, 2017 http://www. sanken-ele. co. jp/en © SANKEN

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SCM3615C11, SCM3000C. Please refer to the document for exact specifications by model.

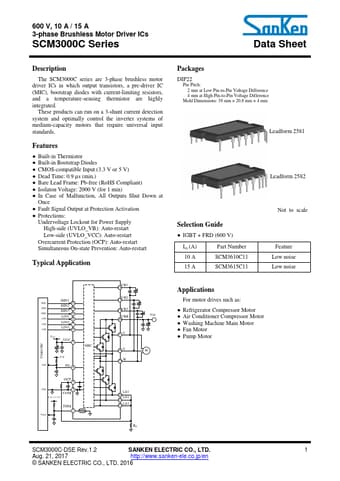

datasheet Preview Page 2 datasheet Preview Page 3
