SCM1245MF, SCM1200MF High Voltage 3-phase Motor Driver

SCM1245MF Description

600 V High Voltage 3-phase Motor Driver ICs SCM1200MF Series Data Sheet .
The SCM1200MF series are high voltage 3-phase motor driver ICs in which transistors, pre-driver ICs (MICs), and bootstrap circuits (diodes and resisto.

SCM1245MF Features

* Each Half-bridge Circuit Consists of a Pre-driver IC
* In Case of Abnormal Operation, All Outputs Shut Down via Three FO Pins Connected Together
* Built-in Bootstrap Diodes with Current Limiting Resistors (22 Ω)
* CMOS-compatible Input (3.3 V or 5 V)
* Bare Lead Frame: Pb-free

SCM1245MF Applications

* For motor drives such as:
* Refrigerator Compressor Motor
* Air Conditioner Compressor Motor
* Washing Machine Main Motor
* Fan Motor
* Pump Motor SCM1200MF-DSE Rev.2.0 SANKEN ELECTRIC CO. , LTD. 1 Feb. 18, 2019 https://www. sanken-ele. co. jp/en © SANKEN ELECTRIC CO. , LTD. 201

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SCM1245MF, SCM1200MF. Please refer to the document for exact specifications by model.

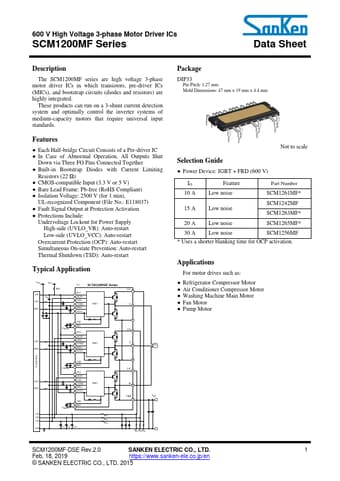

datasheet Preview Page 2 datasheet Preview Page 3
