EU01 - Fast Recovery Diode

EU01 Description

VRM = 400 V, IF(AV) = 0.25 A, trr = 400 ns Fast Recovery Diode EU01 Data Sheet .
The EU01 is a fast recovery diode of 400 V / 0. VRM.

EU01 Features

* VRM
* 400 V
* IF(AV)

EU01 Applications

* Secondary-side Rectifier Diode (Flyback Converter, LLC Converter, etc. )
* Freewheel Diode (Offline Buck Converter, Offline Buck-boost Converter, etc. ) Package Axial (φ2.7 × 5.0L / φ0.6) Cathode Mark (1) (2) (1) (2) (1) Cathode (2) Anode Not to scale EU01-DSE Rev.1.3 SANKEN ELECT

📥 Download Datasheet

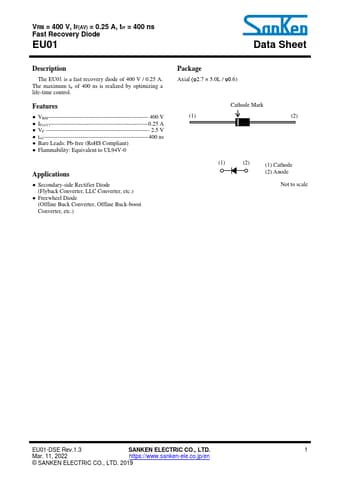

Preview of EU01 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EU01
Manufacturer
Sanken ↗
File Size
219.26 KB
Datasheet
EU01-Sanken.pdf
Description
Fast Recovery Diode
