EM01 - General-purpose Rectifier Diode

Description

The EM01 is a 400 V, 1.0 A general-purpose rectifier diode with low loss characteristics.

This rectifier diode is for a commercial power supply.

Features

  • VRM --------------------------------------------------- 400 V.
  • IF(AV)---------------------------------------------------- 1.0 A.
  • VF (IF = 1.0 A) --------------------------------- 0.90 V typ.
  • Bare Leads: Pb-free (RoHS Compliant).
  • Flammability: Equivalent to UL94V-0.

📥 Download Datasheet

Datasheet Details

Part number EM01
Manufacturer Sanken
File Size 216.43 KB
Description General-purpose Rectifier Diode
Datasheet download datasheet EM01 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EM01Z Silicon And Fast Recovery Rectifiers WEJ
EM033C08 Low Power 32Kx8 SRAM in a 32 pin ROM Pinout Compatible Package Integrated Silicon Solution Inc
EM033C08N Low Power 32Kx8 SRAM in a 32 pin ROM Pinout Compatible Package Integrated Silicon Solution Inc
EM033C08T Low Power 32Kx8 SRAM in a 32 pin ROM Pinout Compatible Package Integrated Silicon Solution Inc

Other Datasheets by Sanken

Part Number Description
EM01A General-purpose Rectifier Diode
EM01C General-purpose Rectifier Diode
EM01Z General-Purpose Rectifier Diode

Full PDF Text Transcription

Click to expand full text

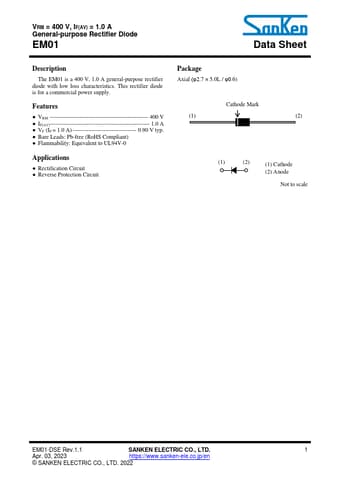

VRM = 400 V, IF(AV) = 1.0 A General-purpose Rectifier Diode EM01 Data Sheet Description The EM01 is a 400 V, 1.0 A general-purpose rectifier diode with low loss characteristics. This rectifier diode is for a commercial power supply. Features ● VRM --------------------------------------------------- 400 V ● IF(AV)---------------------------------------------------- 1.0 A ● VF (IF = 1.0 A) --------------------------------- 0.90 V typ. ● Bare Leads: Pb-free (RoHS Compliant) ● Flammability: Equivalent to UL94V-0 Applications ● Rectification Circuit ● Reverse Protection Circuit Package Axial (φ2.7 × 5.0L / φ0.6) Cathode Mark (1) (2) (1) (2) (1) Cathode (2) Anode Not to scale EM01-DSE Rev.1.1 SANKEN ELECTRIC CO., LTD. 1 Apr. 03, 2023 https://www.sanken-ele.co.
