BR203, BR202 - (BR202 / BR203) POL Converter Module

Name: BR203
SKU: BR203-795831

Sanken

📥 Download Datasheet

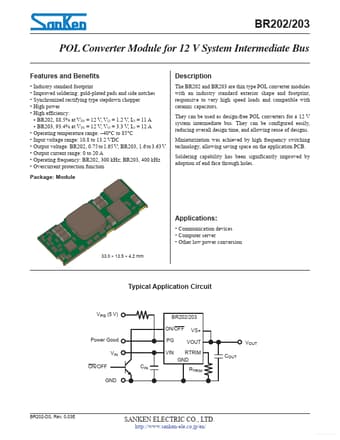

BR203 Datasheet Preview — This datasheet PDF includes multiple part numbers: BR203, BR202. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	BR203, BR202
Manufacturer	Sanken
File Size	627.26 KB
Description	(BR202 / BR203) POL Converter Module
Datasheet	BR202-Sanken.pdf
Note	This datasheet PDF includes multiple part numbers: BR203, BR202. Please refer to the document for exact specifications by model.

BR203 Product details

Description

The BR202 and BR203 are thin type POL converter modules with an industry standard exterior shape and footprint, responsive to very high speed loads and compatible with ceramic capacitors.

Features

Industry standard footprint.
Improved soldering: gold-plated pads and side notches.
Synchronized rectifying type stepdown chopper.
High power.
High efficiency: ▫ BR202, 88.5% at VIN = 12 V, VO = 1.2 V, IO = 11 A ▫ BR203, 93.4% at VIN = 12 V, VO = 3.3 V, IO = 12 A.
Operating temperature range:.
40°C to 85°C.
Input voltage range: 10.8 to 13.2 VDC.
Output voltage: BR202, 0.75 to 1.65 V; BR203, 1.6 to 3.63 V.
