STRV153, STR-V153 - PRC Off-Line Switching Regulator

Sanken electric

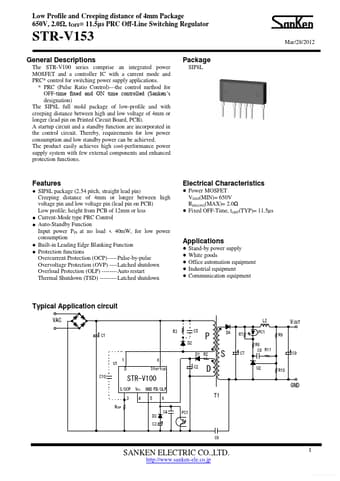

STRV153 Datasheet Preview — This datasheet PDF includes multiple part numbers: STRV153, STR-V153. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	STRV153, STR-V153
Manufacturer	Sanken ↗ electric
File Size	916.59 KB
Description	PRC Off-Line Switching Regulator
Datasheet	STR-V153-Sankenelectric.pdf
Note	This datasheet PDF includes multiple part numbers: STRV153, STR-V153. Please refer to the document for exact specifications by model.

STRV153 Product details

Description

The STR-V100 series comprise an integrated power MOSFET and a controller IC with a current mode and PRC control for switching power supply applications. PRC (Pulse Ratio Control)---the control method for OFF-time fixed and ON time controlled (Sanken’s designation) The SIP8L full mold package of low-profile and with creeping distance between high and low voltage of 4mm or longer (lead pin on Printed Circuit Board, PCB).

Features

SIP8L package (2.54 pitch, straight lead pin) Creeping distance of 4mm or longer between high voltage pin and low voltage pin (lead pin on PCB) Low profile; height from PCB of 12mm or less.
Current-Mode type PRC Control.
Auto-Standby Function Input power PIN at no load < 40mW, for low power consumption.
Built-in Leading Edge Blanking Function.
Protection functions Overcurrent Protection (OCP) ----- Pulse-by-pulse Overvoltage Protection (OVP) ---- Latched shutdown Overlo.
